A single overlooked duct noise calculation can transform a significant MEP installation into a major liability once the building is commissioned and the acoustic failures become audible. You are likely familiar with the immense pressure of meeting high-velocity cooling demands in challenging climates while managing conflicting data from equipment manufacturers. It is a common frustration that acoustic compliance often feels like a moving target, only surfacing as a priority when the cost of remediation is at its highest.
We agree that the current industry reliance on generic manufacturer data often leads to unexpected noise issues in high-end developments across the country. This article promises to provide the practical methodology to master the calculation process, ensuring you meet applicable noise regulations and avoid the 30 percent budget overruns typical of late-stage acoustic retrofits. We will examine how to reconcile theoretical data with real-world physics to protect your MEP budget and deliver the quiet, premium environments your clients expect.
Key Takeaways
- Quantify the commercial risk of noise failures, including the high cost of retrofitting silencers and the threat of liquidated damages during building handover in the UAE.
- Master the fundamental variables of a robust duct noise calculation, ensuring that regenerated noise from air turbulence is accurately predicted rather than estimated.
- Recognize why manufacturer-provided data is often insufficient and how “system effect” at fan inlets can compromise even the most detailed theoretical designs.
- Implement a strategic framework for acoustic mitigation that prioritizes early specialist review to prevent costly redesigns in finished ceiling voids.

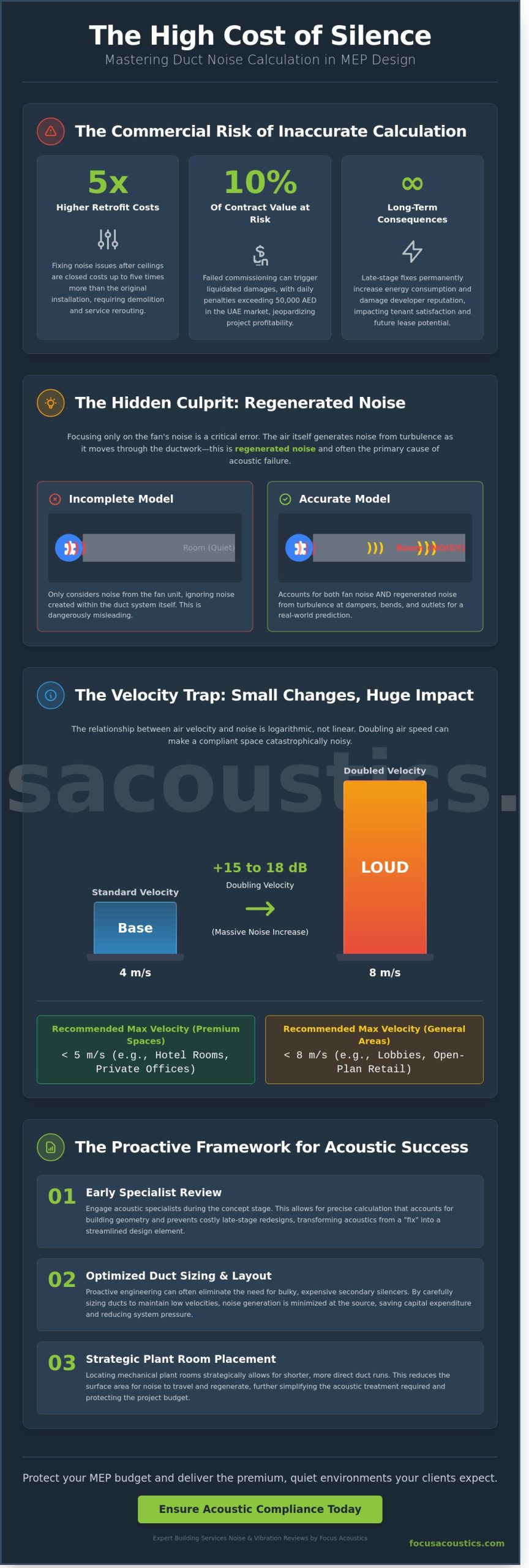

The Commercial Risk of Inaccurate Duct Noise Estimation
In the high stakes environment of UAE real estate, a building’s handover is a critical milestone that leaves no room for acoustic failure. When a luxury commercial tower in Downtown Dubai or an office complex in Abu Dhabi fails its final testing and commissioning due to excessive decibel levels, the financial fallout is immediate. Developers often face liquidated damages that can reach 10% of the total contract value, or daily penalties exceeding 50,000 AED. These delays aren’t merely administrative; they represent a fundamental failure in the initial duct noise calculation process. Relying on generic MEP software frequently leads to these outcomes because such tools often overlook regenerated noise, the sound created by air turbulence as it moves through high velocity systems.
Tenant satisfaction in premium developments is non-negotiable. Occupants paying top tier rents for Grade A office space expect a silent, productive environment. If the HVAC system produces a persistent low frequency rumble or a high pitched hiss, the developer’s reputation suffers long term damage. Acoustic comfort is now a core component of the luxury asset class, and overlooking it during the design phase creates a legacy of complaints and potential lease terminations.
The Hidden Cost of Late-Stage Rework
Fixing noise issues after the ceiling has been closed is a logistical nightmare. Once the decorative finishes and MEP services are installed, the physical space required to fit a large sound attenuator simply doesn’t exist. Retrofitting these components often requires tearing out expensive gypsum ceilings and rerouting other services, which can cost five times more than the original installation. Beyond the direct labor and material costs, adding secondary attenuation increases fan static pressure. This forces the system to work harder, permanently increasing energy consumption and making it difficult to comply with Dubai Municipality noise limits or Estidama pearl ratings.
Why Early Acoustic Input Saves Capital Expenditure
Proactive engineering reduces the need for expensive, bulky hardware. By optimizing duct sizing and layout during the concept stage, we can often eliminate the need for secondary silencers entirely. Strategic plant room placement is another lever; shorter, more direct duct runs minimize the accumulation of noise. Engaging a Building Services Noise & Vibration review early in the project lifecycle allows for a precise duct noise calculation that accounts for the specific geometry of the building. This level of foresight transforms acoustics from a late stage “fix” into a streamlined design element that protects the project budget and the construction program.
Understanding the Variables: Flow Velocity and Regenerated Noise
Many MEP teams in Dubai focus exclusively on the fan’s sound power level when addressing HVAC acoustics. This narrow focus is a primary reason why many commercial projects fail their final acoustic commissioning. Even if a fan is perfectly attenuated, the air itself becomes a noise source as it moves through the distribution system. This is known as regenerated noise. It’s the sound created by air turbulence as it strikes duct walls, dampers, and internal components.
Distinguishing between fan-borne noise and flow-generated noise is essential for an accurate duct noise calculation. Fan noise travels from the plant room through the ductwork, while regenerated noise is born within the ceiling void of the occupied space. If your design ignores the physics of air movement, you’ll likely face expensive remedial works after the ceilings are closed.
The Impact of Air Velocity on Sound Power
Air velocity is the most volatile variable in duct acoustics. The relationship between velocity and noise is logarithmic, not linear. In most configurations, doubling the air velocity increases the sound power level by approximately 15 to 18 decibels. This massive jump can turn a compliant office into an uncomfortable environment instantly.
In the UAE, the challenge is amplified by extreme cooling loads that often exceed 250 Watts per square meter. Meeting these thermal requirements within restricted ceiling heights often tempts designers to increase air speeds. However, for a premium environment like a hotel guest room or a private office in the DIFC, duct velocities should stay below 5 meters per second. For larger areas like lobbies or open-plan retail spaces, 8 meters per second is generally the upper limit. Pushing beyond these figures without expert building services noise control usually results in audible turbulence that silencers cannot fix.
Turbulence and Pressure Drops
Duct geometry is the second major factor in noise regeneration. Every time air is forced to change direction or squeeze through a restriction, turbulence increases. High aspect ratio rectangular ducts, those wider than a 4:1 ratio, are particularly problematic. These flat surfaces lack stiffness and can vibrate, acting like a speaker membrane that radiates noise into the plenum.
Components like VAV boxes and volume control dampers act as secondary noise sources. When a damper is partially closed to balance a system, it creates a high-pressure drop and intense localized turbulence. Technical research into the acoustic performance of duct systems confirms that system effects from poor fittings can increase noise levels far beyond theoretical predictions. To mitigate this, engineers must prioritize long-radius elbows and smooth transitions. The “we’ve always done it this way” approach of using mitered elbows with turning vanes often fails to meet the stringent Dubai Municipality noise regulations in high-spec builds. Early coordination between the acoustic consultant and the MEP coordinator ensures these physical requirements are integrated before the duct noise calculation is finalized and procurement begins.
A Practical Framework for Duct Noise Calculation
A rigorous duct noise calculation represents the primary defense against unforeseen acoustic failures in commercial developments. In the UAE’s high-pressure construction market, relying on manufacturer “typical” data often leads to costly remedial works during the Defects Liability Period (DLP). Our role as consultants is to verify the entire acoustic path through five critical steps that ensure the design intent translates to the built environment.
- Step 1: Establish the base sound power levels (Lw) of primary fan equipment across all eight octave bands. It’s a mistake to rely on a single dBA figure; low-frequency rumble is rarely captured in weighted averages and is the hardest to mitigate later.
- Step 2: Calculate natural attenuation. Every meter of ductwork, every bend, and every branch transition reduces the sound energy. These losses must be quantified accurately to avoid over-specifying secondary silencers.
- Step 3: Account for regenerated noise. This is the sound created by the airflow itself as it encounters dampers, coils, or sharp turns. Citing ASHRAE’s guide to HVAC noise control provides the necessary mathematical basis for predicting these turbulence-induced levels, ensuring that the velocity within the duct doesn’t become its own noise source.
- Step 4: Determine breakout noise. This involves quantifying how much sound escapes through the duct walls into the ceiling void and subsequently into the occupied space below.
- Step 5: Compare the final sound pressure levels (Lp) against the project’s specific Noise Criteria (NC) or Room Criteria (RC) targets.
Calculating System Attenuation
System attenuation is the cumulative loss of acoustic energy as sound travels from the plant room to the terminal. Bends, branches, and sudden expansions act as natural silencers, but their effectiveness depends heavily on the frequency of the sound. Internal duct lining provides significant high-frequency absorption, whereas external lagging is primarily used to contain breakout noise. We also factor in end reflection loss. This occurs when low-frequency sound waves encounter a sudden change in area at the duct exit, causing energy to reflect back toward the source rather than entering the room. This phenomenon is often the reason why a system sounds quieter in a large open-plan office than in a small meeting room.
Predicting Breakout and Terminal Noise
Rectangular ducts are particularly vulnerable to breakout noise due to their large, flat surface areas that vibrate easily under internal pressure. In many Dubai office towers, switching to circular or flat-oval ductwork in critical zones can eliminate the need for expensive heavy-duty lagging, saving the contractor both time and material costs. Terminal noise is equally vital; grilles and diffusers must be selected based on their individual NC ratings at the design flow rate. All calculations must be verified against the HVAC Noise Control in Dubai pillar standards to ensure the finished space meets the expected engineering benchmarks. This level of detail prevents the common error of over-specifying silencers, which can add 15% to 20% to the mechanical package budget without providing a tangible acoustic benefit.
Beyond the Formula: Addressing System Effects and Poor Installation
A theoretical duct noise calculation provides a baseline for design, but it rarely accounts for the chaotic reality of a construction site. In the laboratory, manufacturers test fans and attenuators under ideal, laminar flow conditions. In a typical Dubai commercial development, plant room space is at a premium. This often results in fans being placed too close to bends or transitions. This “system effect” creates turbulence that can increase noise levels by 10 to 15 dB compared to catalog data. Relying purely on manufacturer sheets without adjusting for these aerodynamic disturbances is a significant commercial risk that leads to post-occupancy failure.
Installation quality is the silent killer of acoustic performance. Flexible duct connections are a primary example. When these are poorly supported or installed with sharp, 90-degree offsets, they become active noise generators. A flex duct that’s crushed or improperly cinched creates localized turbulence right at the terminal point. This occurs exactly where the occupant is most sensitive to sound. Without on-site verification, these errors remain hidden until the system is commissioned, at which point the cost of rectification multiplies.
The Reality of Contractor Execution
Common installation errors frequently undermine high-quality specifications. Internal duct liners are often crushed during transport or improperly adhered, causing them to flap and generate low-frequency rumble. Dampers are frequently placed directly against elbows, which disrupts airflow and spikes noise levels. This is why Construction Support is vital for maintaining the acoustic integrity of the design. We often challenge the industry habit of high-velocity terminal runs. While they save ceiling void space, they almost always push noise levels 5 to 8 dB above the design target, requiring expensive, last-minute attenuation.
Insight: The Fallacy of the “Safety Margin”
Many engineering teams attempt to mitigate risk by adding a generic 5dB safety margin to every duct noise calculation. This approach is fundamentally flawed. Over-engineering leads to oversized silencers that increase static pressure. In a large-scale UAE project, this extra pressure forces the use of larger fans and increases annual energy consumption. This can waste thousands of AED in unnecessary equipment costs and operational overheads. Precision modeling replaces these generic assumptions with accuracy. By identifying the exact requirements for each branch, we balance acoustic comfort with the mechanical efficiency required by regulations like Al Sa’fat. High-performance buildings don’t need more materials; they need better coordination.
To ensure your mechanical systems meet international standards without unnecessary over-spend, explore our Building Services Noise and Vibration services.
Strategic Mitigation: Integrating Acoustic Analysis into MEP Programs
Waiting until the handover phase to address HVAC vibration or airflow roar is a high-risk commercial strategy. In the UAE market, where Grade A office space commands premium rates, a failed acoustic test during commissioning can delay occupancy and trigger liquidated damages. Engaging a specialist consultant during the detailed design stage allows for a rigorous duct noise calculation that identifies potential failures before procurement begins. This calculation is not merely a technical exercise; it serves as a commercial shield that justifies the cost of high-performance attenuators or larger duct cross-sections to project stakeholders who may otherwise prioritize immediate CAPEX savings over long-term asset value.
Collaborative Design for Quiet Buildings
Success requires a synthesis between the visual intent of the architect and the functional requirements of the MEP engineer. While Architectural Acoustics focuses on the internal response of a room, it cannot compensate for a poorly designed air distribution system that exceeds the target Noise Criteria (NC). We recommend a technical design review to ensure that duct routing does not compromise ceiling heights or aesthetic finishes. You can contact the team at Focus Acoustics to facilitate this coordination, ensuring that acoustic integrity is baked into the Revit model rather than added as an afterthought.
Ensuring Compliance Across the GCC
Regulatory landscapes in the region are tightening. Whether you are navigating Dubai Municipality noise regulations or the evolving standards of the Saudi Building Code, a robust acoustic report is now a prerequisite for many municipality inspections. Beyond simple compliance, the regional real estate market is increasingly valuing “wellness” and “quietude” as tangible assets. A building that meets its acoustic targets on the first attempt avoids the 40,000 AED to 150,000 AED costs often associated with retrofitting silencers into restricted, finished ceiling voids.
Before finalizing duct specifications, MEP leads should verify the following checklist to minimize project risk:
- Confirm that the duct noise calculation accounts for regenerated noise at dampers and branch take-offs, not just fan power levels.
- Verify that the static pressure drop across specified attenuators does not force the fan to operate at a higher, noisier RPM.
- Ensure that Acoustic Testing & Verification protocols are written into the sub-contractor’s scope to guarantee performance.
- Check that flexible connections and vibration isolators are correctly specified for all suspended equipment to prevent structure-borne flanking.
The transition from a noisy, turbulent environment to one of engineered silence is a hallmark of premium Middle Eastern construction. By integrating acoustic analysis early, project teams replace uncertainty with engineering precision, ensuring the final delivery matches the original design vision without the friction of late-stage corrections.
Protecting Project Programs Through Acoustic Certainty
Relying on rule-of-thumb estimates for HVAC systems creates significant financial exposure during the commissioning phase of any major development in Saudi Arabia or the UAE. A precise duct noise calculation serves as more than a technical exercise; it’s a risk management tool that prevents the need for costly silencer retrofits or late-stage ductwork modifications. We’ve seen that overlooking regenerated noise at high-velocity branch take-offs often results in non-compliance with local municipality standards. When you prioritize acoustic integrity during the design stage, you protect the project’s program and ensure the final environment reflects the architectural intent.
Focus Acoustics was founded in 2021 as an independent specialist consultancy to bridge the gap between complex physics and practical delivery. Our team provides delivery-focused advisory across Qatar, Saudi Arabia, and the UAE to ensure high-performance buildings meet their functional and aesthetic goals without compromise. We understand the commercial pressures of tight schedules and the necessity of getting the design right the first time.
Ensure your HVAC design meets international standards with a Focus Acoustics review
Taking control of the acoustic environment early allows your team to build with confidence and deliver spaces where silence is a deliberate design feature.
Frequently Asked Questions
How does duct velocity affect noise levels in commercial buildings?
Duct velocity directly dictates the self-generated noise levels within the HVAC system. When air speeds exceed 7.5 meters per second in main headers or 4 meters per second in branch ducts, the resulting turbulence creates significant low-frequency rumble. In high-rise projects in Dubai, restricted ceiling voids often force designers into high-velocity configurations. This approach inevitably requires larger, more expensive silencers later in the program to compensate for the initial design oversight.
What is the difference between sound power and sound pressure in duct calculations?
Sound power represents the total acoustic energy emitted by equipment like a fan, while sound pressure is the actual noise level measured at a specific receiver point. For an accurate duct noise calculation, consultants must use the manufacturer’s sound power levels as the starting point. Relying on sound pressure data is a common mistake in UAE submittals because pressure varies based on the room’s volume and finishes, leading to inaccurate performance specifications for noise control measures.
Is internal duct lining or an external silencer more effective for noise control?
External attenuators are far more effective for targeted noise reduction, especially at the lower frequencies generated by large AHUs. While internal lining provides some attenuation, it’s often limited by the 25mm or 50mm thickness constraints of standard UAE ductwork. Relying solely on lining frequently leads to failure during Estidama or Dubai Municipality compliance testing. Silencers offer certified insertion loss data, allowing for a predictable and commercially secure acoustic design.
Can I use software to perform duct noise calculations accurately?
Specialized software can perform a duct noise calculation with high precision, provided the input data is correct. These tools allow us to model the entire path from the fan to the terminal device. However, software cannot replace professional judgment regarding site-specific installation constraints. We often find that default software settings underestimate the noise generated by turbulent flow at elbows and take-offs in complex MEP layouts.
What are the common causes of breakout noise in HVAC systems?
Breakout noise occurs when acoustic energy vibrates the duct walls, radiating sound into the surrounding ceiling void. This is typically caused by high-pressure airflows or using lightweight rectangular ductwork without sufficient stiffening. In 85% of commercial fit-outs, this issue is exacerbated by locating high-velocity primary ducts directly over quiet zones like boardrooms. Addressing this requires either heavier gauge metal or high-density acoustic lagging, which adds cost if not budgeted during the shell and core stage.
How do I calculate the noise generated by a VAV box?
VAV noise calculation requires analyzing both the discharge noise traveling down the duct and the radiated noise coming through the casing. You must check the manufacturer’s data at the specific pressure drop and airflow required for the zone. In many Dubai office projects, VAVs are selected at the limit of their capacity to save space. This results in 5 to 8 dB increases in noise levels that standard ceiling tiles cannot mask, necessitating expensive secondary attenuators.
Why is regenerated noise often overlooked in MEP designs?
Regenerated noise is frequently ignored because it happens at the end of the line, far from the primary plant. When air passes through grilles, dampers, or sharp bends, it creates new noise regardless of how quiet the upstream fan is. MEP teams often focus on the AHU but forget that a poorly selected linear slot diffuser can exceed the room’s NC target on its own. Correcting this after the ceilings are closed can cost five times more than selecting the right component initially.
What are the acceptable NC levels for luxury residential projects in the UAE?
Luxury residential units in the UAE typically require a Noise Criterion (NC) level of 25 to 30 in bedrooms and NC 30 to 35 in living areas. These targets are more stringent than standard commercial offices and reflect the expectations of high-end tenants. Meeting these levels requires a comprehensive strategy that includes low-velocity terminal units and high-performance silencers. Failing to hit these targets often results in costly rework or legal disputes during the handover of premium developments.
